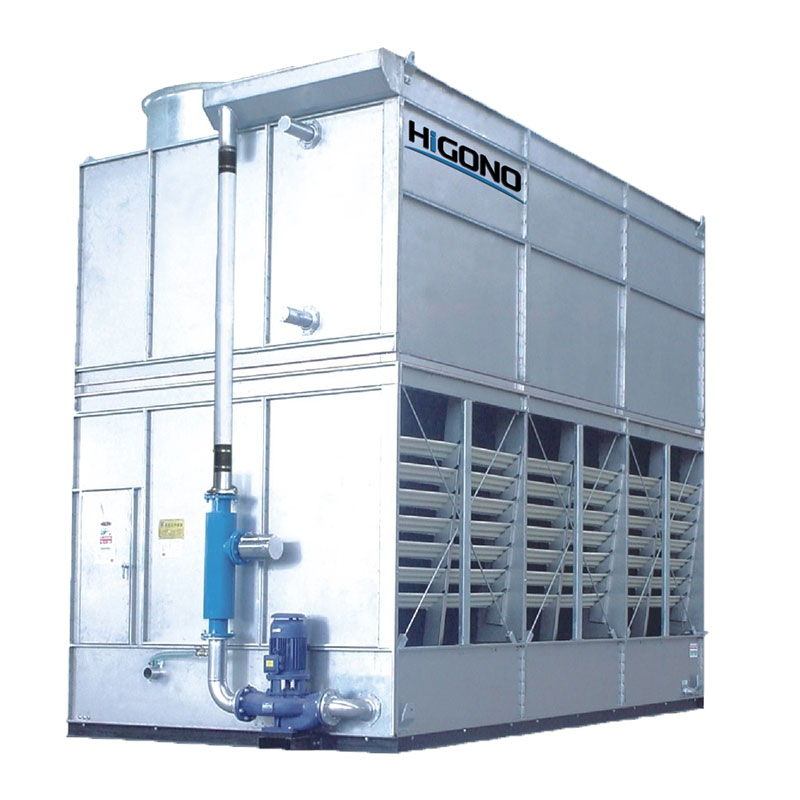

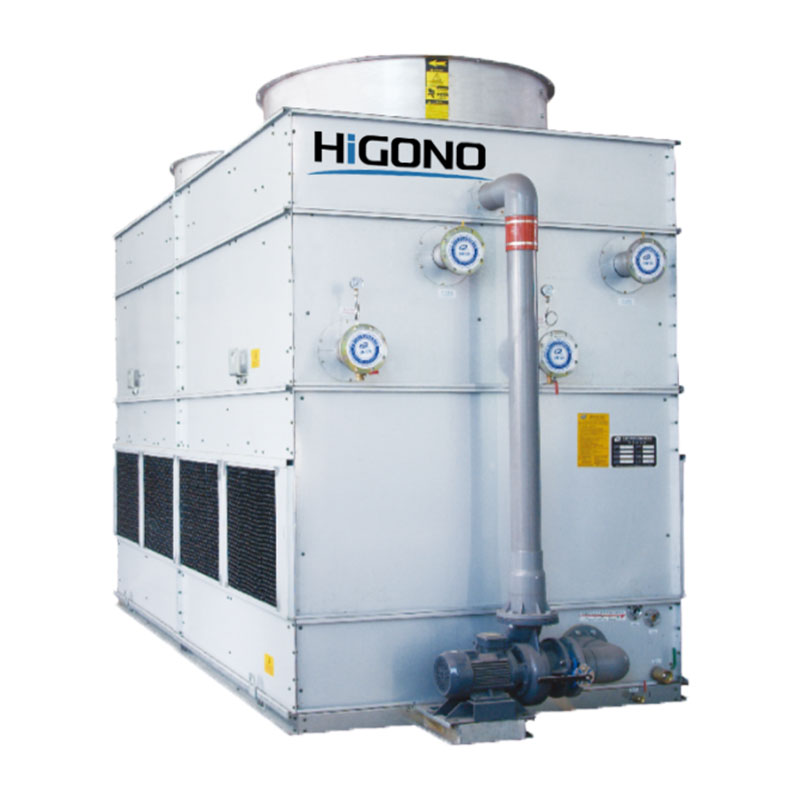

Downflow Evaporative Condenser

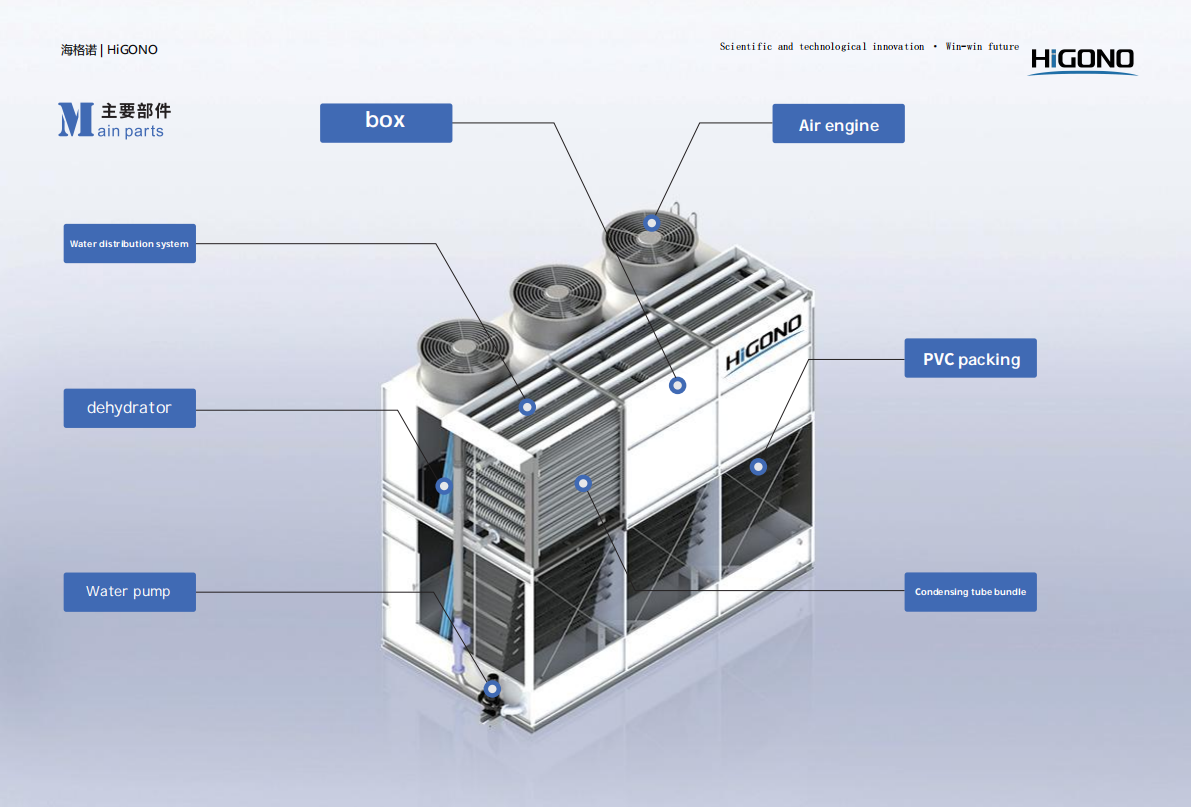

Main parts
Box
Aluminum plated zinc steel plate; It has the advantages of strong thermal resistance and excellent heat resistance.
Other options: galvanized plate G235, stainless steel 304, 316L, etc.; Special equipment size customization.
Air engine
Adopt direct axial fan, IP55 outdoor waterproof motor.
It has the advantages of low noise, high efficiency, few friction parts, no transmission loss and low fault.
Other options :IP56/IP66 protection grade; Explosion- proof, variable speed motor; Aluminum alloy, high strength fiber blade; Optional motor brand.
Water distribut system
The use of removable, large flow anti-blocking blue nozzle, to ensure that the water is continuously and evenly covered on the surface of the coil, improve the heat transfer effect.
Dehydrator
The use of corrosion-resistant PVC material, effectively remove the water droplets in saturated wet air, so that the water floating rate is less than 0.001%; Detachable design is convenient
for later cleaning and maintenance of the equipment.
Water pump
It adopts low-noise, fully enclosed, anti-splash and dustproof outdoor motor, equipped with stainless steel impeller and high quality mechanical seal.
It has the advantages of low energy consumption, excellent performance and long service life.
Other optional :IP56/66 protection grade; Explosion-proof motor; Optional motor brand.
PVCpacking
Specially designed PVC honeycomb packing has the advantages of good flame retardancy, small wind
resistance coefficient, anti-aging and so on.
Other options: CPVC, PP filler.
Condensing tube bundle
The pipe adopts round steel pipe, and the tube bundle is tested for air tightness three times.
Integral hot-dip chain treatment improves corrosion resistance and prolonging service life.
Other optional: stainless steel 304, 316L, etc.
Special coil thickness, test pressure customization.
Peration principle

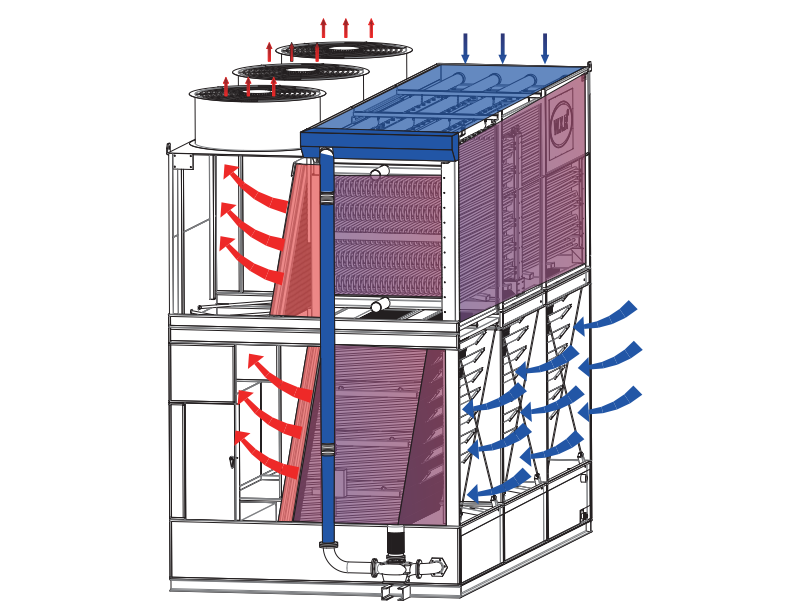

Evaporative condensers use the evaporation of part of the cooling water to carry away the heat released by the refrigerant gas condensation process. The cooling water is sent to the spray pipe above the condensate coil by the pump, and is evenly sprayed on the outer surface of the condensate coil to form a thin layer of water film.
The high-temperature refrigerant steam enters from the upper header of the coiled coil, and the condensed liquid exits from the lower part of the coil. Part of the water vaporized into steam due to heat absorption is sucked away and discharged into the atmosphere by the axial flow fan, and the cooling water that has not been evaporated is cooled again by the side fresh air when flowing through the high efficiency PVC layer packing, and drops in the lower water collection tray for circulation by the pump. The axial flow fan draws air from the top, strengthens the
air flow, forms negative pressure in the box, reduces the evaporation temperature of water, promotes the evaporation of water film, and strengthens the heat release of the condensing coil.

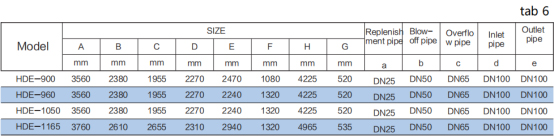

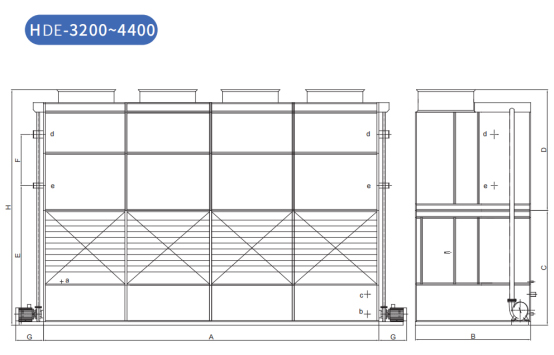

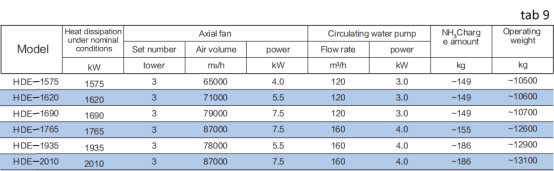

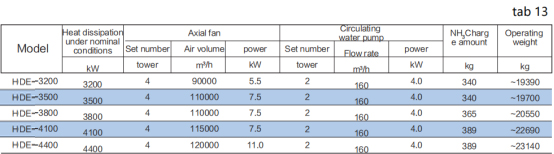

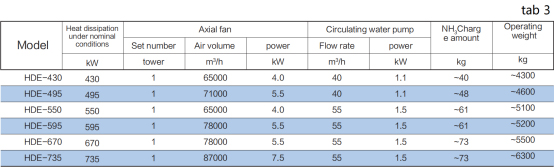

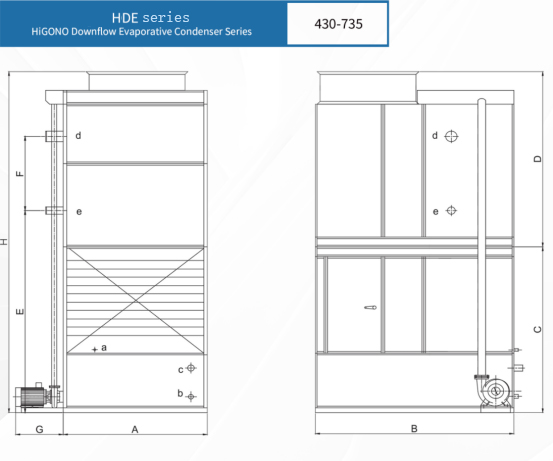

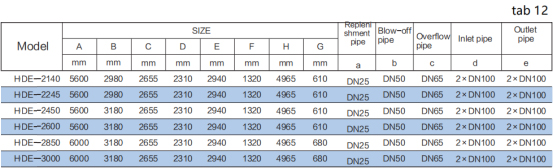

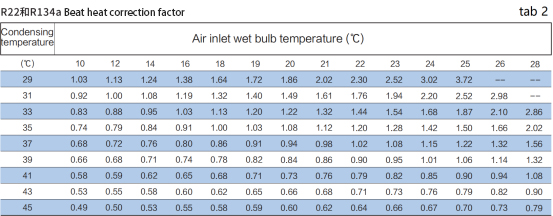

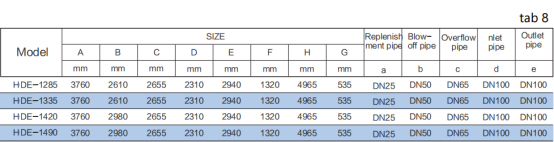

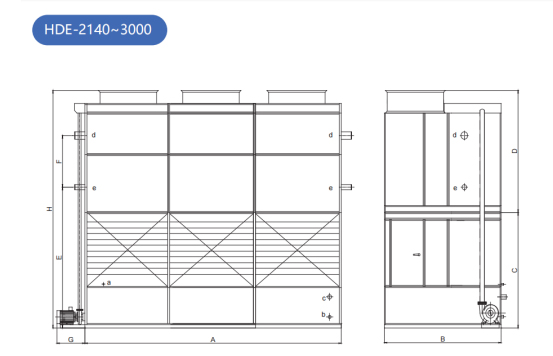

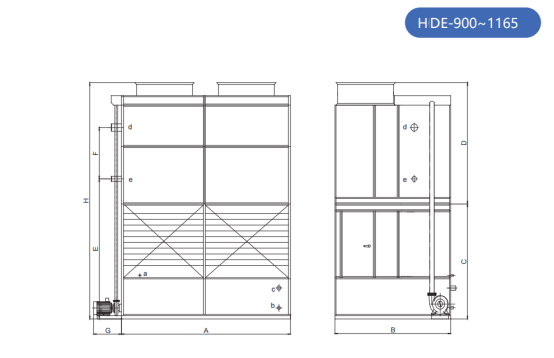

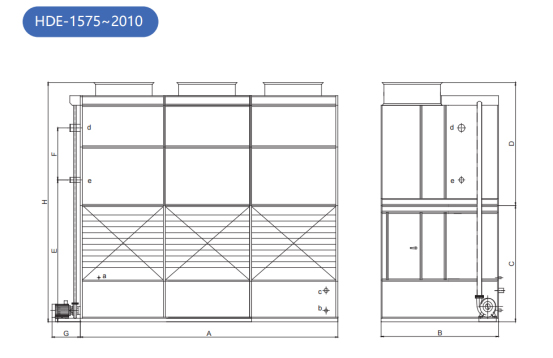

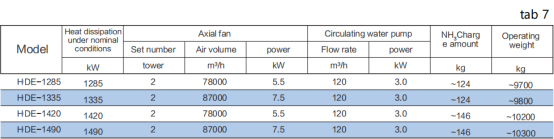

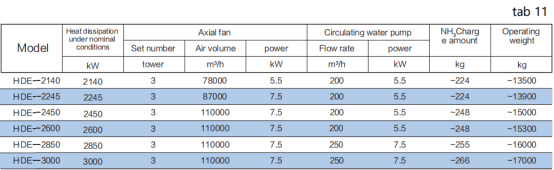

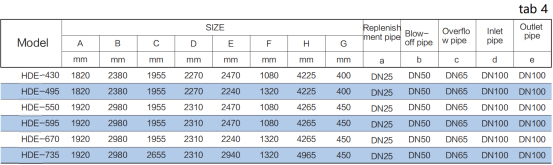

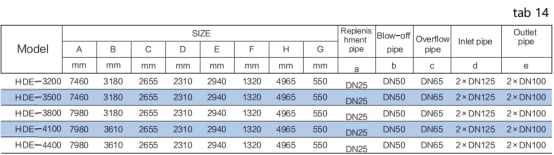

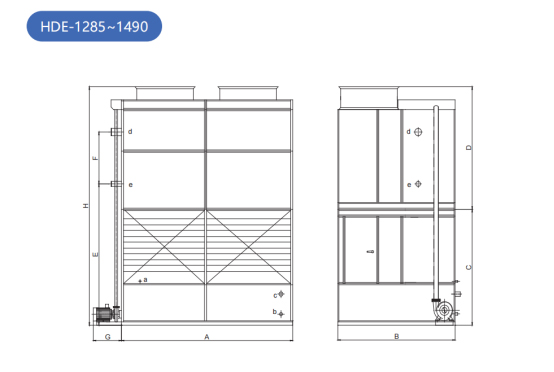

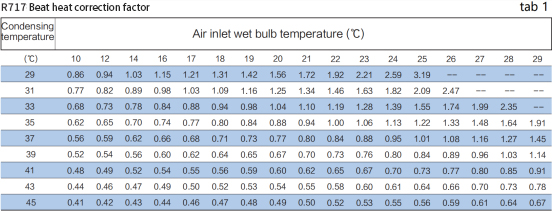

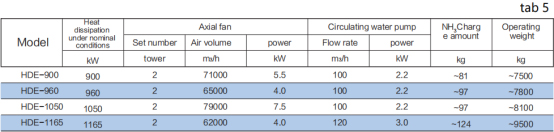

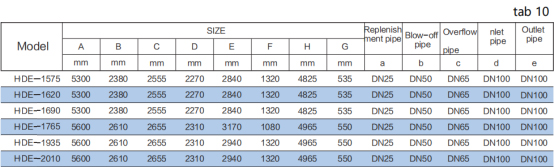

Selection
Evaporative condensers use the evaporation of part of the cooling water to carry away the heat released by the refrigerant gas condensation process. The cooling water is sent to the spray water above the condensate coil by the pump, and is evenly sprayed on the outer surface of the condensate coil to form a thin layer of water film. The high-temperature refrigerant steam enters from the upper header of the coiled coil, and the condensed liquid exits from the lower part of the coil. Part of the water vaporized into steam due to heat absorption is sucked away and discharged into the atmosphere by the axial flow fan, and the cooling water that has not been evaporated is cooled again by the side fresh air when flowing through the high efficiency PVC layer packing, and drops in the lower water collection tray for circulation by the pump. The axial flow fan draws air from the top, strengthens the air flow,forms negative pressure in the box, reduces the evaporation temperature of water, promotes the evaporation of water film, and strengthens the heat release of the condensing coil.
Area cooperation
Food processing
Polysilicion
Cold-china logistics
Industrial refrigeration
Cold storage
Fruit juice and dairy
Data center
Electric power generation
Chemical industry
Pharmaceutical
Competive adcantage
Modular design, easy to install and transport equipment on site.
Provide customized design services to meet the application requirements of different projects.
Equipped with the first evaporative cooling, closed tower test center in China, the data is real and reliable to ensure product performance.
Stainless steel and carbon steel materials are managed and processed in different areas to avoid rust infection during processing.
Independent raw material leveling, to ensure that the material is real and reliable, eliminate shoddy, to ensure product quality .
The plate is cut by laser, which is precise and beautiful, and reduces the error caused by manual operation.
Accessories are sandblasted to keep the inside of the equipment clean.
Three-dimensional warehouse, product parts classification is clear, reduce delivery errors.
Apply big data system to track and supervise production progress and refine production management.
